LONGBOW Econom CNC Press Brake
Econom CNC Press Brake For The More Demanding Taste
Superior Quality. Reliability In An Economical Machine

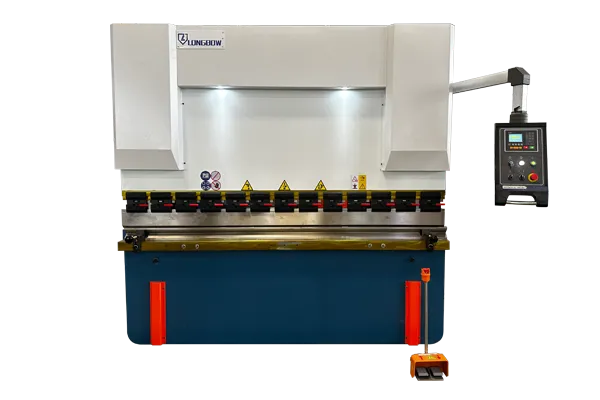

WC67K CNC press brake is a cost-effective CNC press brake. The machine adopts torsion axis synchronization and has two synchronous swing arms at both ends of the slider, so that the slider movement is always parallel to the workbench, and has strong anti-deflection ability during operation. The lower limit stroke of the cylinder is positioned by a mechanical gear set to prevent the bending angle from drifting during continuous operation. The block and slider stroke can be manually fine-tuned. The machine can use a variety of different CNC systems: E21, TP10, CT8, DA41, etc.
Includes Following Features And Properties
Tool Clamping:
CNC System:
CNC System:
BackGauge :
A variety of CNC systems available
Simple and solid Hydraulic Press Brake
Work area can be customized and all types of tool clamping can be installed
Tailored-made Hydraulic Press Brake
Standard Equipment
- Controller: E21、TP10、DA41、CT8
- Electrics: Schneider Electric - France
- Main Motor: Siemens Motor - Germany
- Foot Switch: KACON - South Korea
- Hydraulic System: FIRST - USA
- Oil Pump: FIRST - USA
- Sealing Ring: PARKER - America
- High Efficiency Motor - Class IE3
- Tube Connector: EMB - Germany
- Backgauge: SHAC - Taiwan
- Y-axis travel switch: Schneider
Technical Specifications
| Model | Bending Force | Bending Length (A) | Oil Tank | Approaching Speed | Ram Speed | Return Speed | Column Distance (B) | Throat Depth (D) | Stroke (C) | Daylight (E) | Main Motor | Weight | Dimensions |
| Unit | Kn | mm | L | mm/s | mm/s | mm/s | mm | mm | mm | mm | Kw | Ton | LxWxH mm |
| 30t/1600 | 300 | 1600 | 80 | 120 | 17 | 160 | 1300 | 200 | 80 | 320 | 5.5 | 2.3 | 1650*1200*1700 |
| 30t/2000 | 300 | 2000 | 100 | 140 | 17 | 160 | 1600 | 200 | 80 | 320 | 5.5 | 2.5 | 2000*1200*1700 |
| 40t/2500 | 400 | 2500 | 170 | 110 | 15 | 90 | 2030 | 250 | 100 | 340 | 5.5 | 3.5 | 2500*1200*1900 |
| 63t/2500 | 630 | 2500 | 170 | 100 | 10 | 70 | 2050 | 250 | 120 | 340 | 5.5 | 4.5 | 2500*1350*2100 |
| 63t/3200 | 630 | 3200 | 170 | 120 | 10 | 70 | 2510 | 250 | 120 | 340 | 5.5 | 5 | 3200*1350*2100 |
| 80t/2500 | 800 | 2500 | 170 | 110 | 10 | 80 | 2050 | 250 | 120 | 350 | 5.5 | 6 | 2500*1400*2150 |
| 80t/3200 | 800 | 3200 | 170 | 130 | 10 | 80 | 2510 | 250 | 120 | 350 | 5.5 | 6.2 | 3200*1400*2150 |
| 100t/2500 | 1000 | 2500 | 260 | 90 | 7.5 | 70 | 2050 | 300 | 160 | 420 | 7.5 | 6.5 | 2500*1500*2200 |
| 100t/3200 | 1000 | 3200 | 260 | 100 | 7.5 | 70 | 2510 | 300 | 160 | 420 | 7.5 | 7.7 | 3200*1500*2300 |
| Model | Bending Force | Bending Length (A) | Oil Tank | Approaching Speed | Ram Speed | Return Speed | Column Distance (B) | Throat Depth (D) | Stroke (C) | Daylight (E) | Main Motor | Weight | Dimensions |
| 100t/4000 | 1000 | 4000 | 260 | 120 | 7.5 | 70 | 3100 | 320 | 160 | 420 | 7.5 | 8.5 | 4000*1750*2590 |
| WX67K – 100t/4000 | 1000 | 4000 | 260 | 120 | 7.5 | 70 | 3100 | 420 | 160 | 440 | 7.5 | 9 | 4000*1500*2400 |
| 125t/3200 | 1250 | 3200 | 260 | 95 | 7 | 65 | 2510 | 320 | 160 | 420 | 7.5 | 7.5 | 3200*1600*2350 |
| 125t/4000 | 1250 | 4000 | 260 | 110 | 7 | 65 | 3100 | 320 | 160 | 420 | 7.5 | 9.5 | 4000*1600*2450 |
| WX67K – 125t/4000 | 1250 | 4000 | 260 | 110 | 7 | 65 | 3100 | 420 | 160 | 440 | 7.5 | 10 | 4000*1750*2590 |
| 125t/5000 | 1250 | 5000 | 260 | 120 | 7 | 65 | 3800 | 320 | 160 | 420 | 7.5 | 9 | 5000*1600*2450 |
| 125t/6000 | 150 | 6000 | 260 | 130 | 7 | 65 | 4600 | 320 | 160 | 420 | 7.5 | 11 | 6000*1600*2450 |
| 160t/2500 | 1600 | 2500 | 260 | 100 | 10 | 100 | 2050 | 350 | 200 | 470 | 11 | 12 | 2500*1650*2700 |
| 160t/3200 | 1600 | 3200 | 260 | 110 | 10 | 100 | 2510 | 350 | 200 | 470 | 11 | 14.5 | 3200*1650*2800 |
| 160t/4000 | 1600 | 4000 | 260 | 120 | 10 | 100 | 3100 | 350 | 200 | 470 | 11 | 19.5 | 4000*1650*2800 |
| Model | Bending Force | Bending Length (A) | Oil Tank | Approaching Speed | Ram Speed | Return Speed | Column Distance (B) | Throat Depth (D) | Stroke (C) | Daylight (E) | Main Motor | Weight | Dimensions |
| 160/5000 | 1600 | 5000 | 260 | 130 | 10 | 100 | 3800 | 350 | 200 | 470 | 11 | 13.5 | 5000*1750*3100 |
| 160/6000 | 1600 | 6000 | 260 | 140 | 10 | 100 | 4600 | 350 | 200 | 470 | 11 | 11.5 | 6000*1750*3300 |
| 200T/3200 | 2000 | 3200 | 435 | 110 | 10 | 100 | 2510 | 350 | 200 | 470 | 15 | 15 | 3200*1650*2800 |
| 200T/4000 | 2000 | 4000 | 435 | 120 | 10 | 100 | 3100 | 350 | 200 | 470 | 15 | 12.5 | 4000*1650*2800 |
| 200T/5000 | 2000 | 5000 | 435 | 120 | 7 | 80 | 3800 | 350 | 250 | 540 | 15 | 19 | 5000*1950*3100 |
| 200T/6000 | 2000 | 6000 | 435 | 120 | 7 | 80 | 4600 | 350 | 250 | 540 | 15 | 21 | 6000*1950*3100 |
| 250T/3200 | 2500 | 3200 | 435 | 90 | 9 | 100 | 2600 | 400 | 250 | 580 | 18.5 | 17 | 3300*2100*3150 |
| 250T/4000 | 2500 | 4000 | 435 | 100 | 9 | 100 | 3300 | 400 | 250 | 580 | 18.5 | 20 | 4000*2100*3150 |
| 250T/5000 | 2500 | 5000 | 435 | 110 | 8 | 100 | 3800 | 400 | 250 | 580 | 18.5 | 23 | 5000*2100*3200 |
| 250T/6000 | 2500 | 6000 | 540 | 120 | 8 | 100 | 4600 | 400 | 250 | 580 | 18.5 | 25.5 | 6000*2100*3200 |
| Model | Bending Force | Bending Length (A) | Oil Tank | Approaching Speed | Ram Speed | Return Speed | Column Distance (B) | Throat Depth (D) | Stroke (C) | Daylight (E) | Main Motor | Weight | Dimensions |
| 300T/3200 | 3000 | 3200 | 540 | 90 | 8 | 75 | 2600 | 400 | 250 | 580 | 18.5 | 21 | 3200*2200*3200 |
| 300T/4000 | 3000 | 4000 | 540 | 100 | 8 | 75 | 3100 | 400 | 250 | 580 | 18.5 | 23 | 4000*2200*3200 |
| 300T/5000 | 3000 | 5000 | 550 | 110 | 8 | 75 | 3800 | 400 | 250 | 580 | 18.5 | 25 | 5000*2200*3200 |
| 300T/6000 | 3000 | 6000 | 560 | 130 | 8 | 75 | 4600 | 400 | 250 | 580 | 18.5 | 27.5 | 6000*2200*3200 |
| 400T/4000 | 4000 | 4000 | 540 | 70 | 7 | 60 | 3100 | 400 | 250 | 580 | 22 | 26 | 4000*2400*3200 |
| 400T/5000 | 4000 | 5000 | 550 | 90 | 7 | 60 | 3800 | 400 | 250 | 580 | 22 | 32 | 5000*2400*3200 |
| 400T/6000 | 4000 | 6000 | 550 | 100 | 7 | 60 | 4400 | 400 | 250 | 580 | 22 | 35 | 6000*2400*3200 |
| 500T/4000 | 5000 | 4000 | 620 | 70 | 6 | 55 | 3100 | 500 | 320 | 620 | 30 | 33 | 4000*2650*3200 |
| 500T/5000 | 5000 | 5000 | 620 | 90 | 6 | 55 | 3800 | 500 | 320 | 620 | 30 | 37.5 | 5000*2650*3200 |
| 500T/6000 | 5000 | 6000 | 620 | 120 | 6 | 55 | 4410 | 500 | 320 | 620 | 30 | 43.5 | 6000*2700*3200 |
| Model | Bending Force | Bending Length (mm) | Oil Tank (L) | Approaching Speed (mm/s) | Ram Speed (mm/s) | Return Speed (mm/s) | Columns Distance (mm) | Throat Depth (mm) | Stroke (mm) | Day – light (mm) | Main Motor (kW) | Weight (kg) | Dimensions (mm) |
| 500T/7000 | 5000 | 7000 | 620 | 130 | 6 | 55 | 5400 | 500 | 320 | 620 | 30 | 55 | 7000×2700×3200 |
| 600T/4000 | 6000 | 4000 | 650 | 80 | 6 | 65 | 3100 | 500 | 320 | 620 | 37 | 45 | 4000×2700×3200 |
| 600T/5000 | 6000 | 5000 | 650 | 90 | 6 | 65 | 3800 | 500 | 320 | 620 | 37 | 48 | 5000×2700×3250 |
| 600T/6000 | 6000 | 6000 | 650 | 110 | 6 | 65 | 4600 | 500 | 320 | 620 | 37 | 55 | 6000×2700×3300 |
| 600T/7000 | 6000 | 7000 | 650 | 120 | 6 | 65 | 5400 | 500 | 320 | 620 | 37 | 62 | 7000×2900×3500 |
Core Features of Econom CNC Press Brake
Bending machine bed
The bed is the basic support structure of the press brake, which needs to withstand various forces and moments generated by the press brake during the working process. Therefore, the structure and material of the bed have a great impact on the performance and accuracy of the press brake.
The bed of the electro-hydraulic servo press brake usually adopts an integral welded structure, which has high stiffness and high stability. The steel plate of the bed is welded with high quality steel plate, and has high precision and stability after strict annealing and stress relief treatment.
Hydraulic system
The hydraulic station is the core of the hydraulic system, which controls the movement of the machine by controlling the pressure and flow of the liquid. The main motor consists of a servo motor tank made of stainless steel. A hydraulic station usually consists of the following main components:
Hydraulic pump: Hydraulic pump is the power component of the hydraulic system, which converts mechanical energy into hydraulic energy and provides power for the entire hydraulic system.
Manual Upper Tool Clamping
The one-key release fast clamp could ensure the safe and fast punch changing, with strict quality requirements and procurement standards of raw materials, which keeps the punch from falling out.
Ball Screw & Guide
The machine features ball screws and linear guide rails to ensure smooth and reliable operation.
Rack Structure
The design of the rack structure brings many advantages: excellent frictionreduction and long service life, high-speed movement with little resistance,multi-point control provides flexible operation, convenient clearance adjustments and reduced maintenance requirements.
Bending machine bed
The bed is the basic support structure of the press brake, which needs to withstand various forces and moments generated by the press brake during the working process. Therefore, the structure and material of the bed have a great impact on the performance and accuracy of the press brake.
The bed of the electro-hydraulic servo press brake usually adopts an integral welded structure, which has high stiffness and high stability. The steel plate of the bed is welded with high quality steel plate, and has high precision and stability after strict annealing and stress relief treatment.
Hydraulic System
The hydraulic station is the core of the hydraulic system, which controls the movement of the machine by controlling the pressure and flow of the liquid. The main motor consists of a servo motor tank made of stainless steel. A hydraulic station usually consists of the following main components:
Hydraulic pump: Hydraulic pump is the power component of the hydraulic system, which converts mechanical energy into hydraulic energy and provides power for the entire hydraulic system.
Manual Upper Tool Clamping
The one-key release fast clamp could ensure the safe and fast punch changing, with strict quality requirements and procurement standards of raw materials, which keeps the punch from falling out.
Ball Screw & Guide
The machine features ball screws and linear guide rails to ensure smooth and reliable operation.
Rack Structure
The design of the rack structure brings many advantages: excellent frictionreduction and long service life, high-speed movement with little resistance,multi-point control provides flexible operation, convenient clearance adjustments and reduced maintenance requirements.
CNC Control System
The new generation press brake controls offer an even higher grade of efficiency in programming, operation and control of today’s press brakes.
DA-41T
E21
TP10
CT8
Press Brake Tool Selection
The right combination of punch and die is essential for achieving the desired bending shape. We offer a wide range of tooling options tailored to meet the diverse bending requirements of our customers.
1-V R Type General Upper Die Bending
1-V Offset Upper Die Bending
2-V 30° Acute Angle Upper Die Bending
2-V 85° Gooseneck Upper Die Bending
2-V 85° General Upper Die Bending
2-V 85° Straight Sword Upper Die Bending
2-V 85° Specialized Upper Die Bending
Pneumatic Double-Sided Folding and Bending
Optional Configurations
Hydraulic Clamping System
Laser Protection
Sheet Follower
Contact Us
Not sure which machine is right for your sheet metal product? Let our knowledgeable sales team guide you in selecting the most suitable solution for your needs.
