In modern sheet metal fabrication, selecting the right combination of industrial press brake and press brake tooling directly affects bending accuracy, production efficiency, tooling lifespan, and operating costs.
As manufacturers move toward smarter fabrication, automation, and higher precision production in 2026, proper tooling selection has become one of the most important factors in maximizing press brake performance. Industry reports show that advanced tooling systems and optimized bending parameters can significantly reduce setup time, improve part consistency, and lower scrap rates.
For fabrication shops, distributors, and industrial manufacturers, understanding how to correctly match tooling with press brake tonnage and material thickness is essential for improving productivity and staying competitive.
At Longbow Machine, we provide complete bending solutions including advanced Industrial Press Brake Machines and precision Press Brake Tooling Systems for global metal fabrication industries.
Why Tooling Matching Matters in Industrial Press Brake Operations
Many fabrication problems are not caused by the press brake itself. In reality, incorrect tooling selection is often responsible for:
- Inconsistent bend angles
- Surface marking
- Excessive springback
- Tooling cracks
- Machine overload
- Reduced bending accuracy
- Increased setup time
- Premature tool wear
Modern CNC industrial press brakes are capable of extremely high precision, with some advanced systems achieving tolerances within ±0.01 mm using closed-loop controls and intelligent compensation systems.
However, even the most advanced press brake cannot perform properly if the tooling does not match:
- Material thickness
- Material type
- Bend radius
- Required tonnage
- Part geometry
- Production volume
This is why more manufacturers are investing in standardized and precision-ground press brake tooling systems.
Understanding the Relationship Between Tonnage and Tooling
Industrial press brake tonnage refers to the bending force required to form metal sheets.
The required tonnage depends mainly on:
- Material thickness
- Material tensile strength
- Die opening width
- Bend length
- Bending method
One of the most common mistakes in sheet metal fabrication is using tooling that does not match the machine tonnage capacity.
For example:
- Using narrow V-dies increases bending force dramatically
- Using oversized tooling reduces bending precision
- Improper punch selection can create stress concentration and tooling damage
According to industry tooling guidelines, die opening width typically should be approximately 6–8 times the material thickness for mild steel applications. Wider V-openings reduce force requirements but increase bend radius.
How Material Thickness Affects Press Brake Tooling Selection
Thin Sheet Metal Applications
Thin materials require:
- Smaller V-dies
- Sharper punches
- Higher precision tooling
- Better angle control
Common applications include:
- Electrical cabinets
- Stainless steel enclosures
- HVAC systems
- Precision sheet metal parts
For thin sheet fabrication, precision-ground tooling helps minimize:
- Surface scratches
- Deformation
- Angle inconsistencies

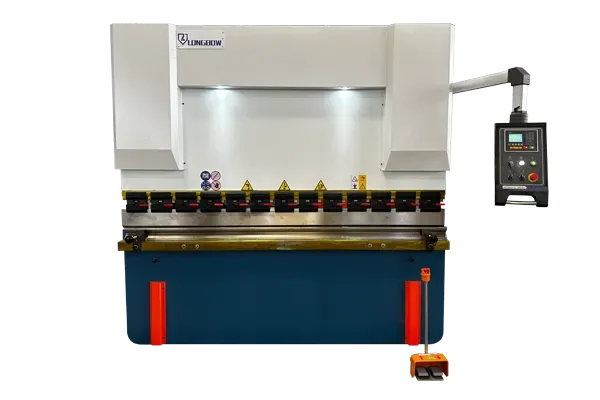

Servo-electric and hybrid industrial press brakes are becoming increasingly popular for thin material bending because they provide:
- Better repeatability
- Lower energy consumption
- Faster response times
Thick Plate Bending Applications
Heavy-duty fabrication requires:
- Larger V-openings
- Reinforced tooling
- High-tonnage press brakes
- Stronger punch structures
Industries using thick plate bending include:
- Construction equipment
- Agricultural machinery
- Energy infrastructure
- Shipbuilding
- Heavy industrial fabrication
High-tonnage applications place significant stress on both tooling and machine frames. Improper tooling selection may result in:
- Tool cracking
- Ram deflection
- Poor angle consistency
- Excessive maintenance costs
This is why industrial fabricators increasingly use hardened precision tooling with advanced heat treatment processes.

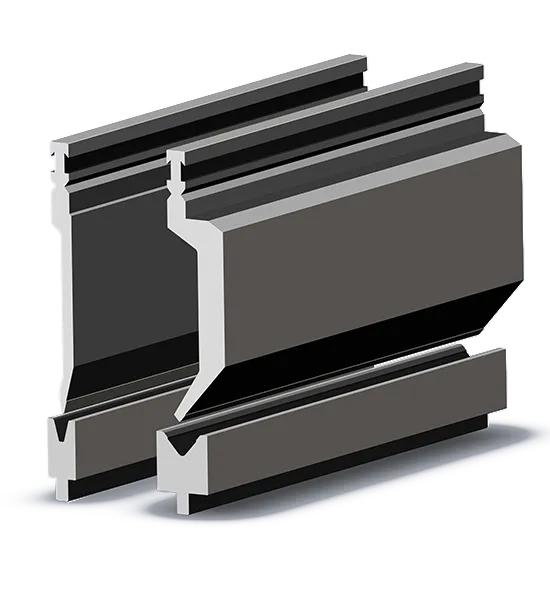

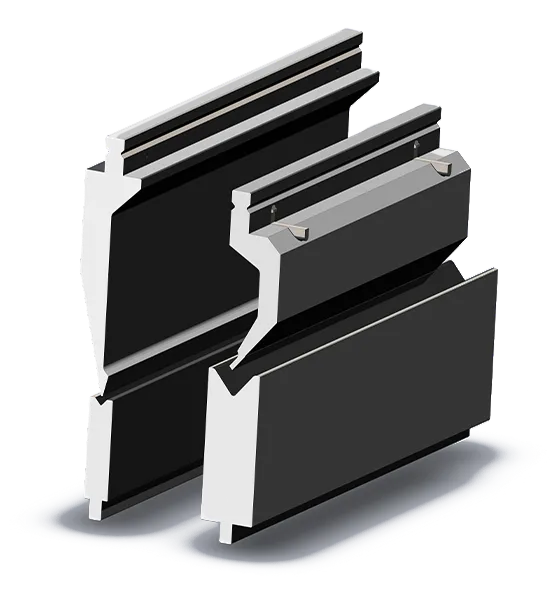

Choosing the Right V-Die Opening
The V-die opening is one of the most important factors in press brake tooling selection.
General guidelines include:
| Material Thickness | Recommended V-Opening |
| 1 mm | 6–8 mm |
| 2 mm | 12–16 mm |
| 4 mm | 24–32 mm |
| 6 mm | 36–48 mm |
| 10 mm | 60–80 mm |
Choosing the correct V-opening helps:
- Reduce tonnage requirements
- Improve bend consistency
- Extend tooling life
- Minimize cracking risk
Too small of a die opening increases required force and may overload the machine. Too large of a die opening reduces angle precision and increases bend radius.

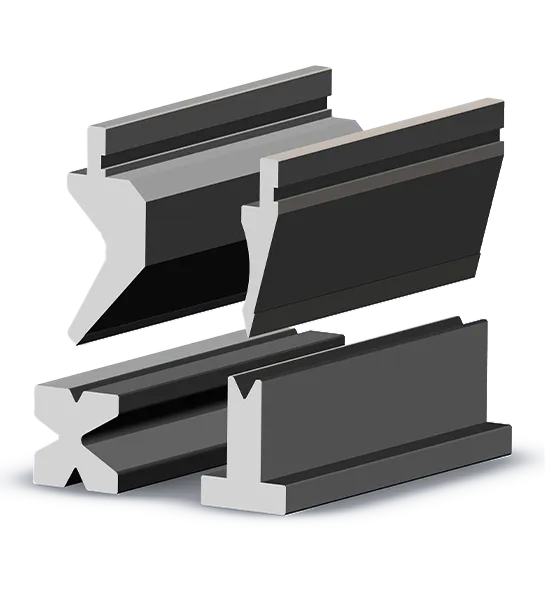

Matching Punch Types with Industrial Applications
Different applications require different punch geometries.

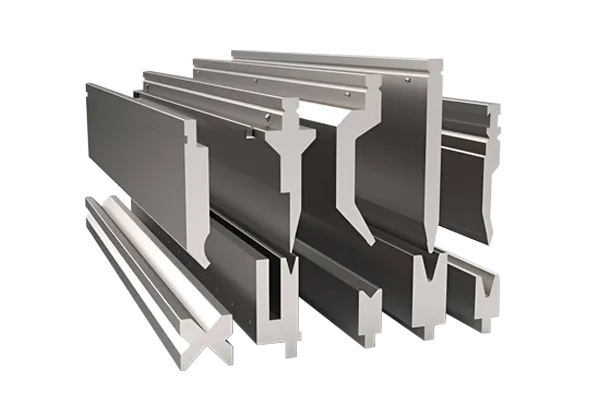

Common Press Brake Punch Types
- Straight Punches
Ideal for standard 90-degree bending operations.
- Gooseneck Punches
Used for deep box bending and complex part geometries.
- Acute Angle Punches
Suitable for sharp angle forming and precision parts.
- Hemming Tooling
Designed for edge folding and reinforcement bends.
Modern fabrication shops often use modular segmented tooling systems to improve setup flexibility and reduce changeover time.
Industry experts report that optimized tooling systems can reduce setup time by up to 40% in high-volume production environments.
Common Tooling Selection Mistakes
1. Ignoring Material Properties
Different metals require different tooling strategies.
For example:
- Stainless steel requires higher tonnage
- Aluminum requires larger bend radii
- High-strength steel creates more springback
2. Using Low-Quality Tooling
Cheap tooling often causes:
- Inconsistent bending
- Faster wear
- Surface damage
- Reduced machine accuracy
High-quality tooling is essential for maintaining consistent production quality.
3. Selecting Tooling Only Based on Price
Modern fabrication profitability depends on:
- Setup speed
- Repeatability
- Reduced downtime
- Lower scrap rates
Focusing only on initial tooling cost may increase long-term operating expenses.
4. Overlooking Tooling Compatibility
Many fabrication shops use mixed tooling standards such as:
- European precision tooling
Proper compatibility is critical for:
- Fast setup
- Accurate clamping
- Automated tool changing
- Safe operation
Why Choose Longbow Machine for Industrial Press Brake and Tooling Solutions
As a professional press brake manufacturer and supplier, Longbow Machine provides complete bending solutions for global fabrication industries.
Our solutions include:
- CNC hydraulic press brakes
- Servo hybrid press brakes
- High-precision press brake tooling
- Custom tooling solutions
- Automated bending systems
- Multi-axis CNC control systems
Our Press Brake Machines are designed for:
- High precision
- Energy efficiency
- Long-term durability
- Smart factory integration
Meanwhile, our Press Brake Tooling Solutions help customers improve:
- Bending accuracy
- Setup efficiency
- Tooling lifespan
- Production flexibility
We support industries including:
- Automotive
- Electrical cabinets
- Construction machinery
- Elevator manufacturing
- HVAC fabrication
- Metal furniture
- Renewable energy equipment
Final Thoughts
Whether you are producing electrical cabinets, HVAC components, construction equipment, elevator panels, or precision sheet metal parts, choosing high-quality CNC press brakes and professional tooling solutions can significantly improve your productivity and profitability.
At Longbow Machine, we provide advanced industrial press brake machines and precision press brake tooling solutions designed for modern fabrication requirements. From standard bending applications to fully customized tooling systems, our team helps global manufacturers achieve more efficient and accurate metal forming results.
